• Exceptional strength-to-weight ratio with durability
• Corrosion and weather/fire resistance
• Lightweight construction
• Energy-efficient design
Standard :
JISG3302 / 3321, ASTM A653/ A792, EN10346Grade :
SCGH / SGLCH, CS-B, DX51D-Z or AZSpecification
| Thickness | 0.12mm-1.0mm/BWG/AWG | ||
| Width Before Corrugation | 762mm-1200mm | ||
| Width After Corugation | 600mm-100mm | ||
| Length | 1000mm-3800mm | ||
| Coating | 40g/m²-120g/m² | ||
| Paints | Top | 16-25 microns | PE, SMP, HDP, PVDF |
| Back | 5-7 Microns | ||
| Color | Ral scale | ||
| Weight Per Bundle | 2mt-4mt | ||
| Base Material | Galvanized steel/Galvalume steel/Pre-painted steel | ||
Mechanical Properties
| Tensile Strength T.S | 400 N/mm²-500 N/mm² |
| Hardness | HRB70-HRB 90 |
Application
 |
 |
 |
Home Appliance Steel Components
Our precision-engineered steel parts provide durable structural solutions for refrigerators, washing machines, and kitchen appliances, combining corrosion resistance with aesthetic finishes for modern home environments.
AV Equipment Enclosures
Specialized steel chassis and mounting solutions for audio-visual systems offer superior electromagnetic shielding with precision-cut openings for optimal heat dissipation and cable management in professional installations.
Office Equipment Framing
High-tolerance steel components for copiers, printers, and workstations deliver exceptional load-bearing performance with scratch-resistant surfaces that maintain professional appearances in busy office settings.

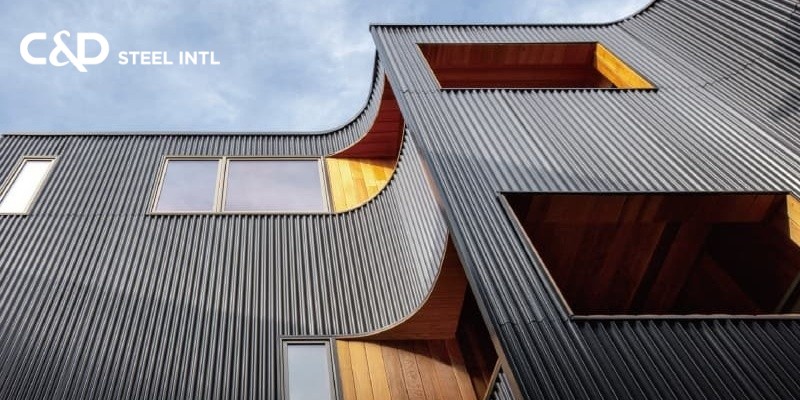

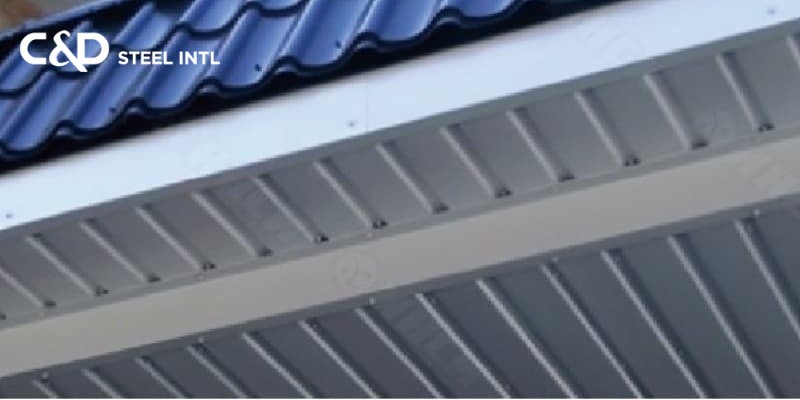

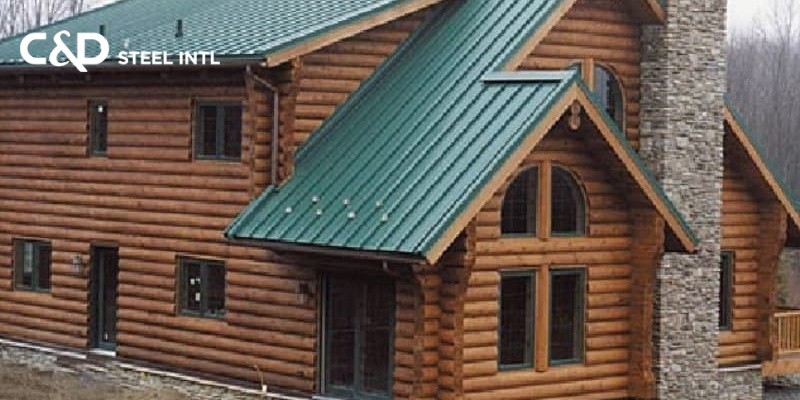

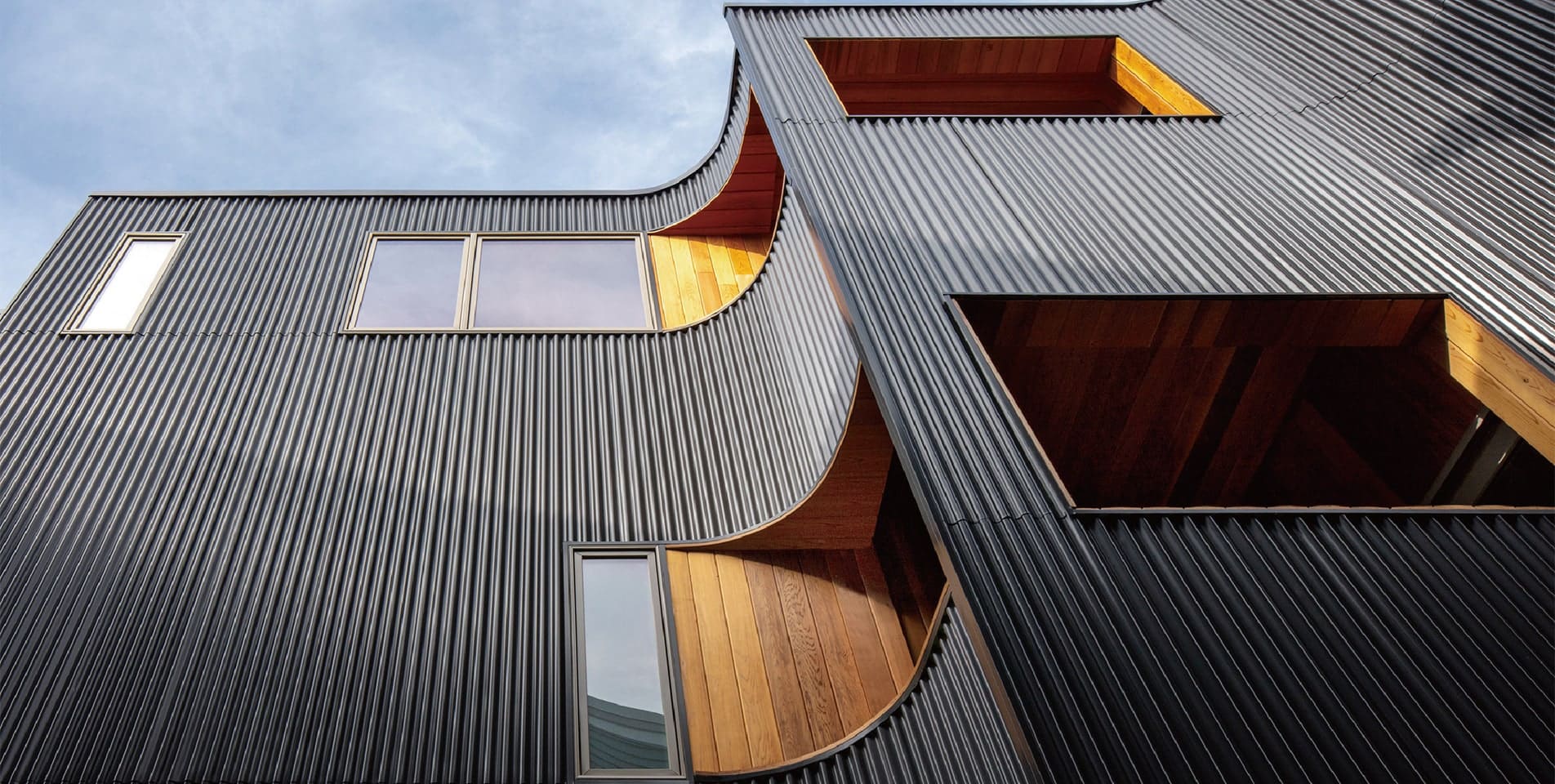

Our structural corrugated steel roofing panels feature a high-strength wavy profile that provides excellent load-bearing capacity and weather resistance. Manufactured from premium galvanized or Galvalume® steel, these panels offer superior corrosion protection and long-term durability in harsh environments. The deep corrugation design enhances structural rigidity while promoting efficient water drainage.
These lightweight yet sturdy panels are ideal for commercial, industrial and agricultural roofing applications. With easy interlocking installation and low maintenance requirements, they deliver cost-effective performance for decades. Available in various gauges and custom lengths to suit different architectural needs.
The panels can be factory-painted in multiple colors to match building aesthetics while maintaining weather resistance.
