What Is Zinc-Aluminum-Magnesium (Zn-Al-Mg) Coated Steel?

Introduction: Why Zn-Al-Mg Coated Steel Is Gaining Global Attention

In construction, roofing, and industrial manufacturing, corrosion resistance has become a decisive factor in material selection. Traditional solutions such as galvanized steel and Al-Zn coatings are increasingly challenged in coastal, industrial, and agricultural environments.

As a result, Zinc-Aluminum-Magnesium (Zn-Al-Mg) coated steel has emerged as a next-generation solution.

This article explains what Zn-Al-Mg coated steel is, how it works, why it outperforms conventional coatings, and where it delivers the greatest value.

What Is Zinc-Aluminum-Magnesium (Zn-Al-Mg) Coated Steel?

Zn-Al-Mg coated steel is a hot-dip coated steel product featuring an advanced zinc-based alloy coating containing aluminum and magnesium. This coating system was first industrialized in Japan and later standardized globally under:

• ASTM A1046 / A1046M (Type 1)
• EN 10346 (ZM series)
• JIS G 3323

Note: “ZAM®” is a registered trademark of Nippon Steel.

Zn-Al-Mg is used here as a generic technical description of zinc-aluminum-magnesium coating systems.

Typical Coating Composition

• Zinc (Zn): approx. 90–96%
• Aluminum (Al): approx. 1–8%
• Magnesium (Mg): approx. 1–4%

By combining:

• Zinc’s sacrificial protection
• Aluminum’s barrier effect
• Magnesium’s corrosion-inhibiting and self-healing behavior

Zn-Al-Mg coated steel delivers significantly enhanced durability compared to conventional galvanized products.

Zn-Al-Mg Coated Steel Specifications

• Thickness: 0.20 – 3.30 mm
• Width: Up to 1,980 mm
• Coating mass: ZM120 / ZM180 / ZM275 / ZM310
• Standards: ASTM A1046 Type 1 / EN 10346 / JIS G 3323
• Steel grades: CS, FS, DS, DDS, HSLA
• Supply form: Coil, sheet, cut-to-length, slit strip

Why Zn-Al-Mg Coated Steel Offers Superior Corrosion Resistance

1. Multi-Layer Protective Mechanism

When exposed to moisture and oxygen, Zn-Al-Mg coatings form a dense and stable corrosion product layer enriched with aluminum and magnesium compounds. This layer significantly slows corrosion progression.

Independent laboratory tests show that Zn-Al-Mg coated steel:

• Resists red rust 10–20 times longer than standard galvanized steel
• Performs exceptionally well in salt spray and cyclic corrosion tests
• Maintains coating integrity under aggressive conditions

2. Excellent Cut-Edge and Self-Protection Performance

One of the most important advantages of Zn-Al-Mg coated steel is its cut-edge protection.

Thanks to the presence of magnesium:

• Protective corrosion products migrate toward exposed steel edges
• Cut edges and drilled holes are actively protected
• Additional edge painting is often unnecessary

Compared to conventional galvanized coatings, Zn-Al-Mg steel shows dramatically reduced edge corrosion, even after prolonged exposure.

Formability and Fabrication

Zn-Al-Mg coated steel offers workability similar to galvanized steel:

• Good bending and roll-forming behavior
• Suitable for complex profiles and standing seam roofing
• Compatible with standard forming equipment

Welding and cutting should follow standard zinc-coated steel practices, with proper ventilation and parameter control.

Environmental and Sustainability Benefits

Zn-Al-Mg coated steel supports sustainability objectives by:

• Reducing zinc consumption for equivalent corrosion resistance
• Lowering lifetime material replacement frequency
• Being 100% recyclable
• Minimizing environmental zinc runoff

Longer service life directly translates into a lower total carbon footprint over the product lifecycle.

Typical Applications of Zn-Al-Mg Coated Steel

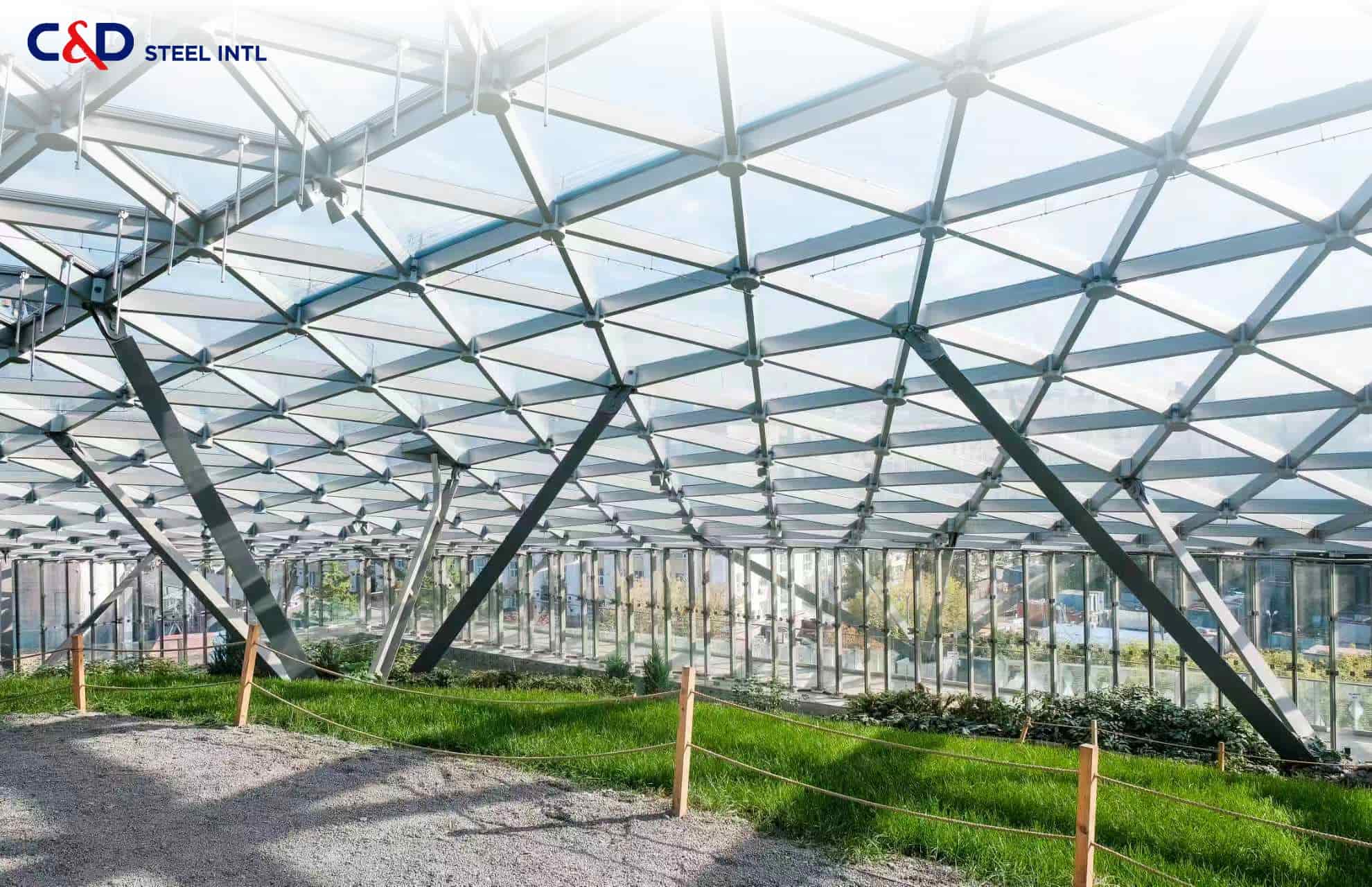

Roofing and Cladding (Especially Coastal Areas)

• Residential and commercial roofing systems
• Standing seam and trapezoidal profiles
• Excellent performance in marine environments

Industrial and Agricultural Facilities

• Warehouses and logistics centers
• Livestock buildings and fertilizer storage
• High resistance to ammonia and chemical exposure

Infrastructure and Energy

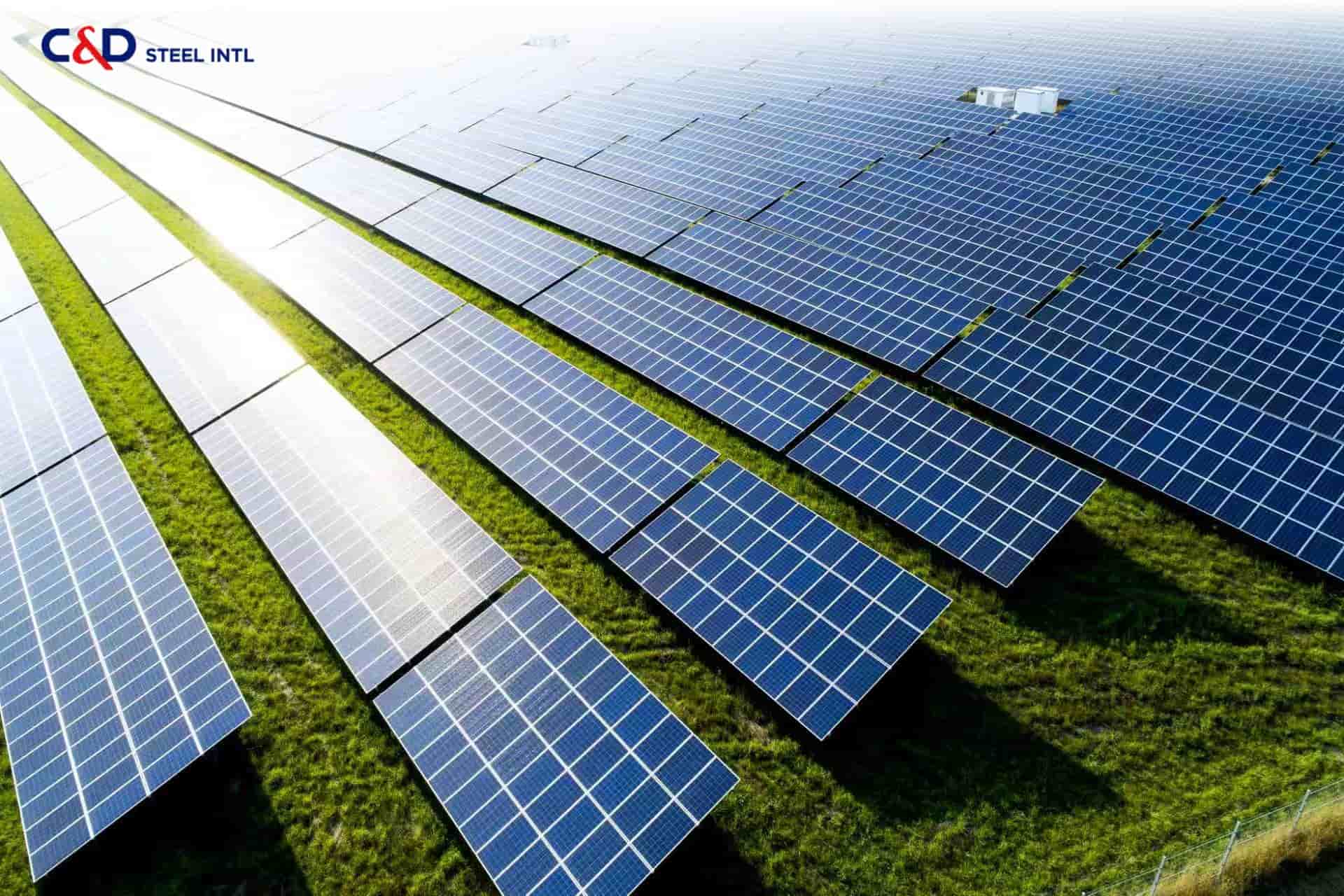

• Solar mounting structures
• Cable trays and electrical enclosures

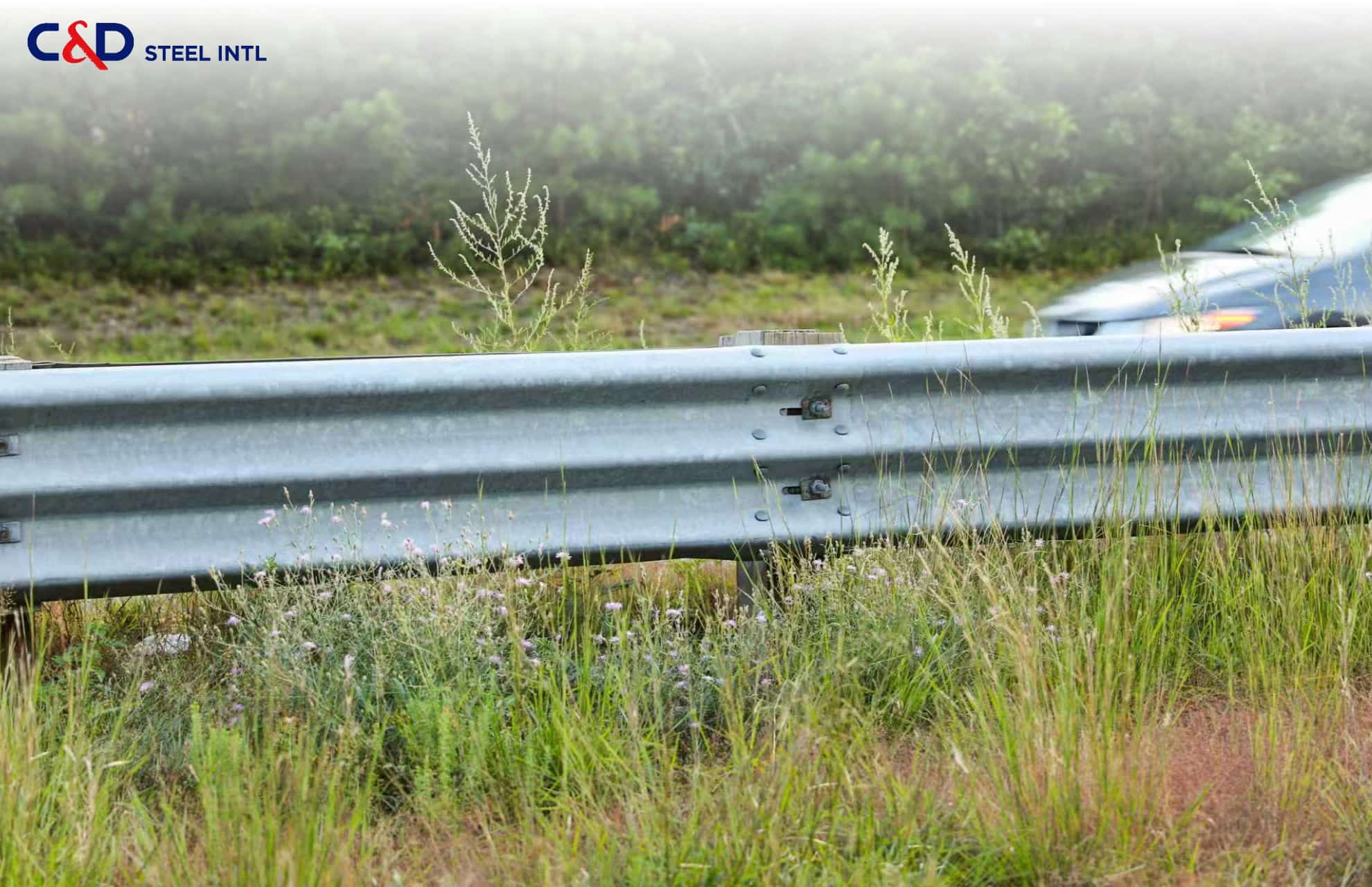

• Highway and transportation components

Manufacturing and Automotive

• Structural components
• Underbody parts requiring enhanced corrosion resistance

Zn-Al-Mg vs Galvanized vs Al-Zn Coated Steel

Although Zn-Al-Mg coated steel may carry a higher initial cost, its longer service life and reduced maintenance often result in a lower total cost of ownership.

Why Choose Cheongfuli (Xiamen) Co., Ltd.?

Advanced Corrosion Protection & Long-Term Durability

Our Zinc-Aluminum-Magnesium (Zn-Al-Mg) coated steel products are manufactured under strict quality control systems with high process consistency. The advanced zinc-based alloy coating, enriched with aluminum and magnesium, provides significantly enhanced corrosion resistance, excellent coating adhesion, and superior cut-edge protection.

Compared with conventional galvanized steel, Zn-Al-Mg coated steel offers longer service life, improved resistance in coastal, industrial, and high-humidity environments, and reduced maintenance requirements. These advantages make our products ideal for outdoor construction, roofing and cladding systems, infrastructure projects, agricultural facilities, and industrial applications, delivering stable and reliable performance under demanding service conditions.

Professional Technical Support & Application Expertise

At Cheongfuli (Xiamen) Co., Ltd., we offer more than just the supply of Zn-Al-Mg coated steel. Our experienced technical team provides comprehensive support, including guidance on:

• Steel grades and mechanical properties
• Zn-Al-Mg coating weights and standards
• Surface finishes and processing options
• Forming, cutting, and welding recommendations
• Application-specific performance and cost optimization

By working closely with our customers, we help ensure optimal material selection, efficient processing, and long-term reliability, enabling superior project performance and overall value.
